SEEDING PRODUCTSCHISEL PLOUGH

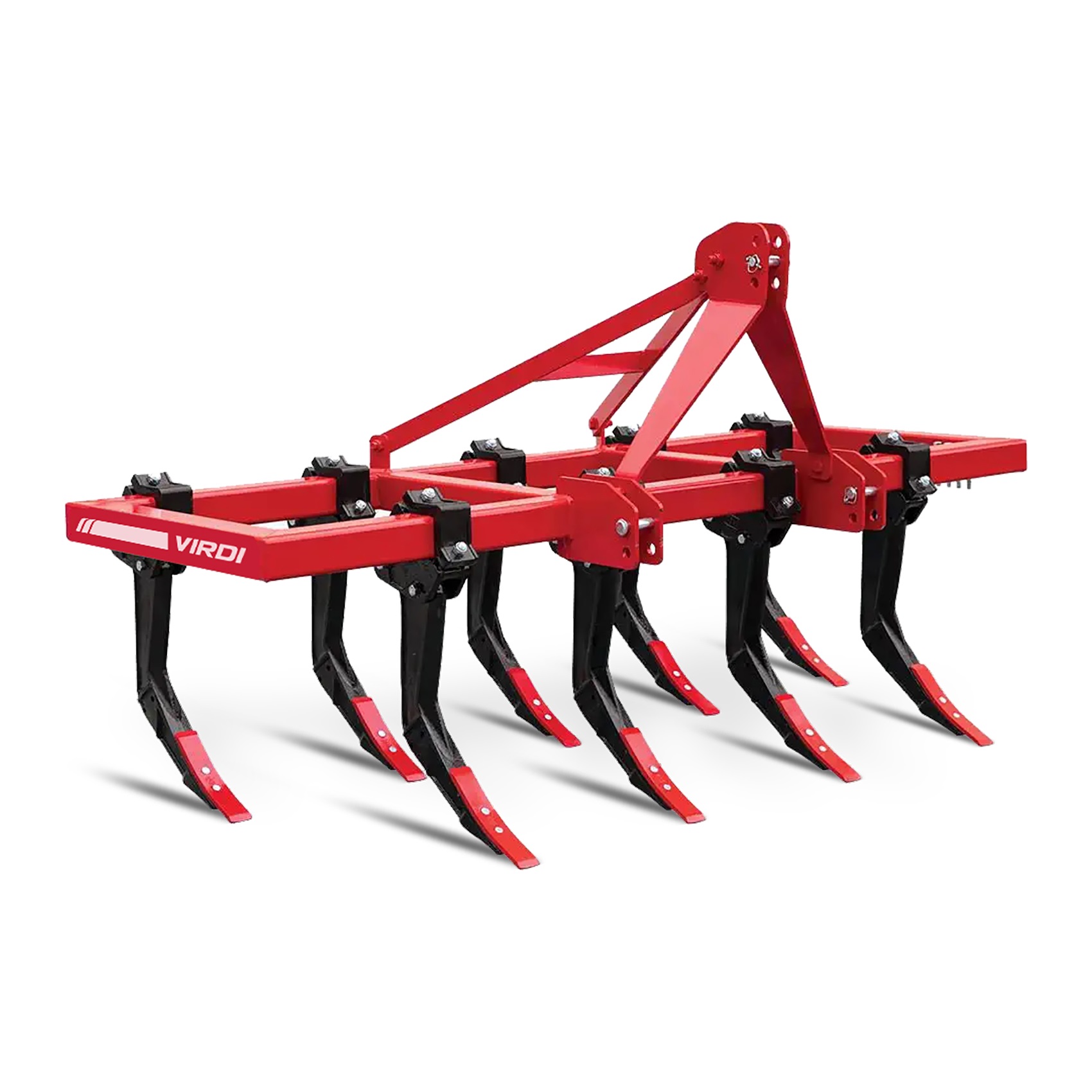

This VIRDI chisel can be used for cultivating soil without needing any plough in the farm after harvest. Due to the structure of its legs, the plough crushes the lower layer and it is a suspension machine cultivating low-clod soil in arid summer months when ploughing cannot be performed. It is possible to perform deep soil cultivation through the chisel. This means, it ensures ventilation of soil and prevents surface accumulation of rainwater and penetration of its to the bottom and preserves the humidity of the soil and allows roots to descend through the bottom without any obstacle by crushing the hard layer. Due to this operation, productivity is increased.






Check the Products MeasurementsTECHNICAL PARAMETERS
MODEL | NO. OF DISC | THICKNESS OF TYNE (mm) | WORKING WIDTH (mm) | WORKING OF DEPTH (mm) | SPACE BETWEEN TYPE (mm) | DIMENSION W X L X H (mm) | WEIGHT (kg) | TRACTOR (HP) |
|---|---|---|---|---|---|---|---|---|
VCP05 | 5 | 30 X 10 | 1250 | 250 - 450 | 250 | 1570 X 1870 X 1300 | 345 | 55-60 |
VCP07 | 7 | 30 X 10 | 1750 | 250 - 450 | 250 | 2200 X 1870 X 1300 | 430 | 65-70 |
VCP09 | 9 | 30 X 10 | 2250 | 250 - 450 | 250 | 2700 X 1870 X 1300 | 520 | 75-80 |
VCP11 | 11 | 30 X 10 | 2750 | 250 - 450 | 250 | 3200 X 1870 X 1300 | 615 | 85-90 |
VCP13 | 13 | 30 X 10 | 3250 | 250 - 450 | 250 | 3700 X 1870 X 1300 | 900 | 95-100 |
VCP15 | 15 | 30 X 10 | 3700 | 250 - 450 | 250 | 3700 X 1870 X 1300 | 966 | 105-110 |
